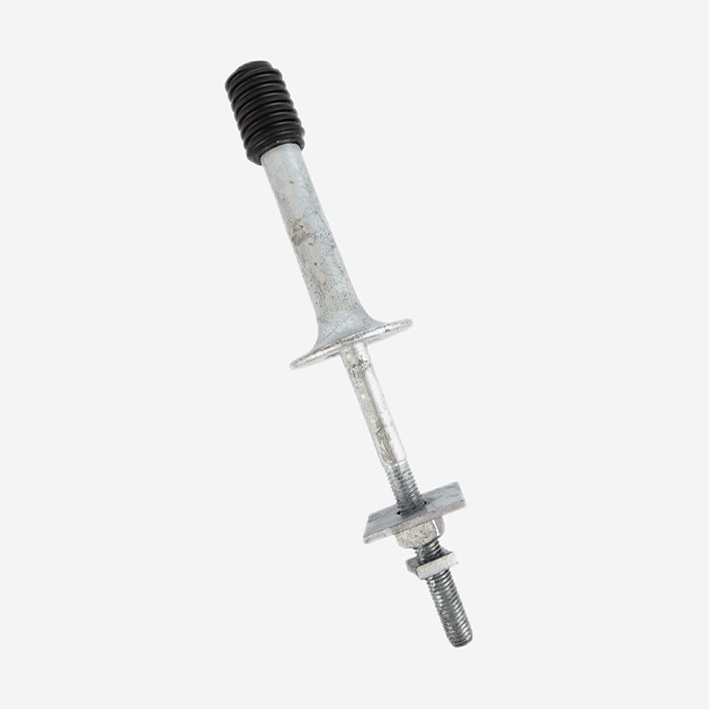

Spindle Of Pin Type Insulators For High Voltage

Availability:
Quantity:
Inquire Add to Basket

Ø Main Dimensions and Standard Particulars the galvanized nut bushing is in coor dinationg with lead spindle

(ANSI C29.6)







Specification

Main Dimension(mm)

Mechanical Strength

(kN)

Class

ANSI

Weight

(kg)

H

D

h

h1

h2

a

d1

KPC1076M

330

76

178

51

76

34.9

20

11

56-1

1.9

KPC1077M

356

76

178

51

76

34.9

20

9

56-2

2.2

KPC1078M

407

89

165

51

76

34.9

20

10

56-3

2.5

KPC1079M

432

89

45

51

76

34.9

20

9

56-4

3.25

KPC1080M

343

45

45

51

76

34.9

20

6

56-2

1.6

KPC1081M

198

76

45

51

40

34.9

20

11

56-2

1.54

KPC1082M

223

76

45

51

40

34.9

20

9

56-2

1.87

KPC1083M

274

89

45

51

40

34.9

20

10

56-3

2.17

KPC1084M

299

89

45

51

40

34.9

20

9

56-4

2.7

KPC1085M

223

45

45

51

40

34.9

20

6

56-2

1.3

KPC1086M

356

76

76

51

76

34.9

20

5

56-2

1.9
